Sensors and practical equipment for CM/PM developers and vibration experts
|

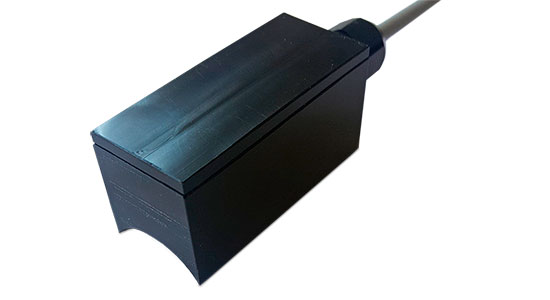

LS100 load sensor for estimating machine power (current) for CM/PM applications Advanced Condition Monitoring and Predictive Maintenance software tools rely today on artificial intelligence (AI) or machine learning methods, and consequently on a huge number of annotated data. Machine operators prefer non-intrusive data collection, means no access to their control system, which complicates data collection, thus the need for appropriate and easy passive add-on measurement hardware. The data collected comprises various parameters, however, power consumed or power output is cumbersome to collect without access to the control software. This inexpensive add-on sensor enables the safe data collection of power information by means of measuring the current flow (magnetic field) in the power cords. |
 |
|

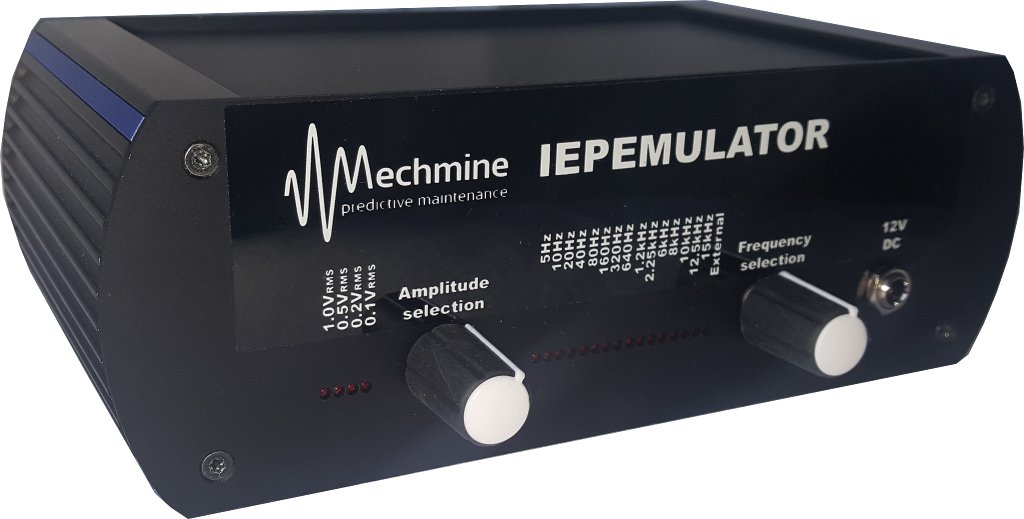

IEPEMULATOR Problem: generating signals for testing cables or Edge-Devices without the need for an IEPE sensor or shaker Application: testing vibration monitoring signal chains from the sensor onwards Purpose: IEPE sensor alike reference signal generation for field or lab use Ideally suited for equipment connected to 2-wire IEPE-based acceleration sensors |
 |
|

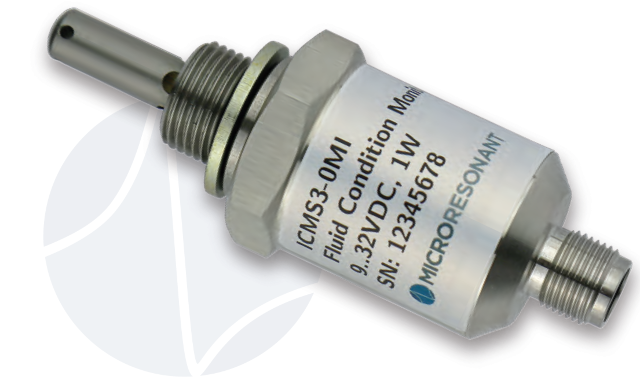

OIL SENSOR The oil sensor with a G3/8 thread measures viscosity (1–650 cSt), density (0.5–1.5 g/cm³) and temperature (-40–125 °C). The innovative measurement method is significantly more robust against surface contaminants and vibrations, which has a positive effect on long-term accuracy. The measured values can be read out by the PLC via 4–20 mA or Modbus/RS-485. The mmBox edge device supports the oil sensor for the Mechmine machine monitoring solution. |
 |
One use-case for the IEPEMULATOR, testing the sensor cabling, measurement bandwith or validating results in GUI/SW/PLC.
